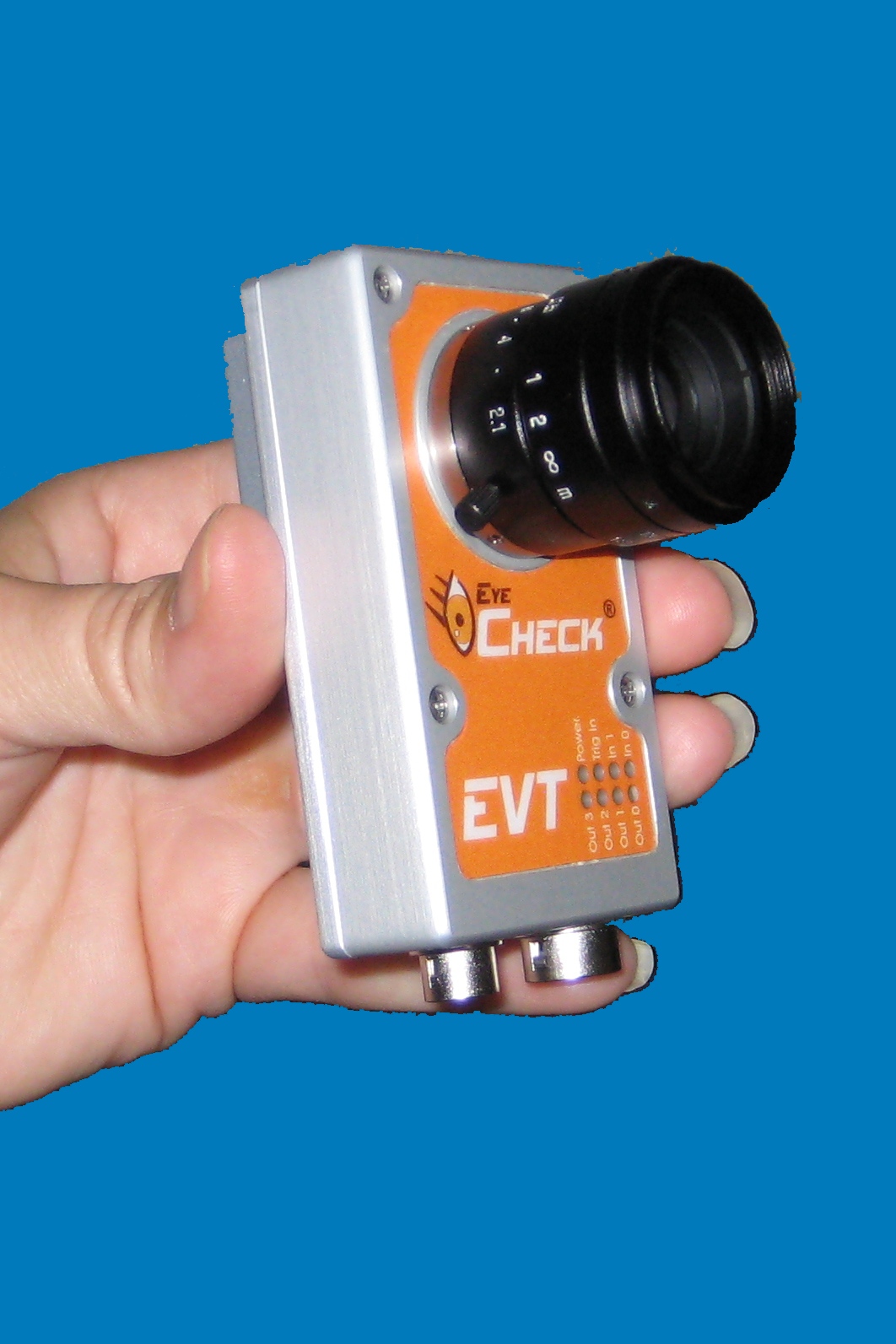

| EyeSpector® 810 Nano Series Specifications | |
| The ESN 810 is a complete machine vision system suitable for stand-alone operation. combines powerful smart camera hardware with world-class standard EyeVision machine vision software.One of the smallest systems on the market today, the ESN 810 can be used in countless industrial applications. | |
| Sensor | 1/3" CMOS |
| Shutter | High-Speed: 31, 25 µs
Low-Speed: up to 2 s adjustable integration time |
| Integration | Global Shutter |
| Acquisition | Asynchronous, program controlled or external trigger, full frame & partial scanning (AOI), acquisition jitterfree |
| Resolution | 752 x 480 Pixels |
| FPS | 60 fps at full resolution |
| A/D conversion | 1 x 27 MHz / 10 bit |
| Processor | 5600 MIPS, 700 MHz Texas Instruments TMS320C64xx |
| Image output | via 100 Mbit Ethernet onto PC |
| Image/Data memory | 128 MBytes DDRAM |
| Flash memory | 32 MB Flash EPROM (non
volatile memory) for programs and data, programmable in the system |
| I/O | 2 inputs / 4 outputs, 24V,
outputs 4 x 400 mA 1 picture trigger input, 1 flash trigger output (24 V) |
| Interfaces | Ethernet 10/100 MBit TCP/IP |
| Operating voltage | 24V +/-20% DC, max. 300 mA |
| Electric Connectors | I/O (DC In, PLC, 12-pin), Ethernet (6-pin) |
| Dimensions | Approx. 80 x 45 x 20 mm, approx. 90 g . |
| PDF download | ESN-810 Nano |
